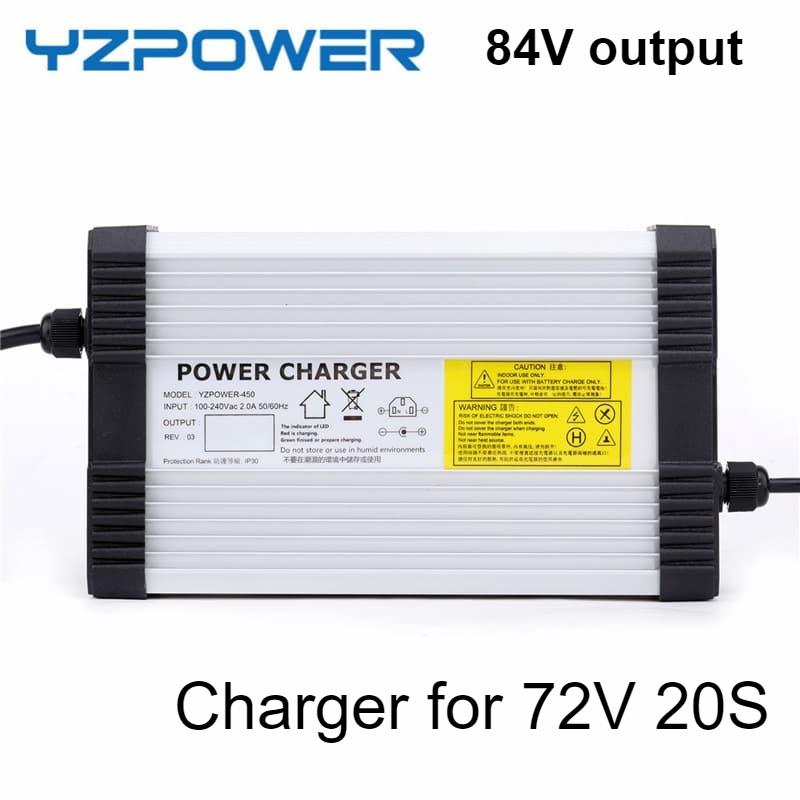

Fast Charger For 72V Li-ion Battery 84V 5A- e-scooters, monowheels etc.

Name: Fast Charger For 72V Li-ion Battery 84V 5A- e-scooters, monowheels etc.
SKU: 31555
Price: 100 USD
Availability: InStock

Buy Now, Pay Later

YZ-POWER

USD 125

We supply this charger custom made with the plug type you need.

for 20S 72V Li-ion Lipo E-bike Tricycle Bicycle
Input Voltage : 110-240Vac
Frequency/current: 47-63Hz / 5A
Charge voltage: 84 V
Charge current: 5 A

Color
Socket Standard	AU PlugEU PlugUK PlugUS Plug Clear

Quantity

Select a product variation to get estimate

MPN: 2000000315553

SKU:

31555

Category:

Chargers Lithium Battery-pack

Tags:

20S 72V battery, 5A, 72V battery pack charger, lithium Li-ion battery charger, Output 84V

Product details

Then the AC plug in the AC outlet, then the charger starts to charge the battery, charging status LED color light displayed by the top of the charger. (The indicator of LED: red is charging, green is charge finished or prepare charging)

If the green light is always on, check that the charging cable is firmly connected to the battery.

for 20S 72V Li-ion e-scooters, monowheels etc.
Input Voltage : 110-240Vac
Frequency/current: 47-63Hz / 5A
Charge voltage: 84 V
Charge current: 5 A
Charge method: CC/CV
Working Temperature: 0°C to 45°C
Storage Temperature: -20°C to 50°C
Charging voltage rated : 84 ± 0.3 V
Charging Current rated : 5 ± 0.5 A
Size:205mm x 121mm x 50mm
Weight: 1.2 kg
Certificate: CE ROHS FCC SAA

Charge Voltage and Current can be customized by Customers requirement.

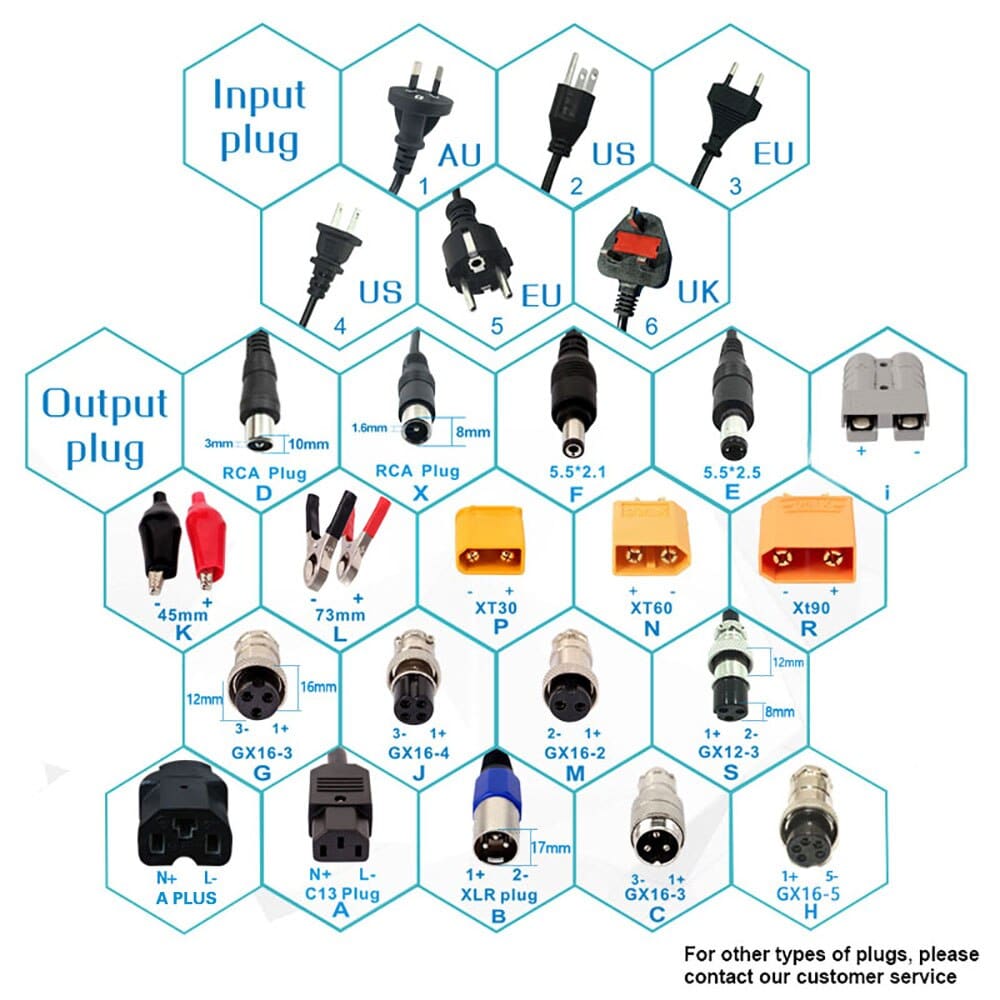

If you cannot find what you need,Please Leave Words of Input AC Plug And Output DC Plug,

Like: ‘AC:Number 5,DC:G’,

72V battery is Frequently found connectors at Monowheels

e-Wheel	Socket	Wiring	Voltage	Topo*	Remark
Most e-wheels	GX16-3	1: V+ ; 3: 0V	67.2V	16S	King Song,Gotway,Solowheel, Airwheel, Firewheel, …
Gotway MSuper3 84V/1600Wh	GX16-4	1: V+ ; 2: 0V	84V	20S	See some MSuper3 with battery <1600Wh -GX16-3 connectors
IPS (Holtz, Zero…)	GX16-4	2: V+ ; 4: 0V	67.2V	16S	warning, same connector as above but different wiring!
InMotion V8 **	GX12-3	1: V+ ; 2: 0V	84V	20S	same connector & wiring as hoverboards
InMotion V3,V5	Lenovo	Int:V+ ; Ext: 0V	84V	20S	Lenovo square socket, originally for Lenovo laptop power supply
Ninebot One***	Lemo		63V	15S	see photo for wiring***
Ninebot Minipro, Xiaomi **	GX12-4	1: V+ ; 4: 0V	63V	15S

GX12 Connector with 12mm thread.

GX16 Connector with 16mm thread.

Item specifics

Weight	1.3 kg
Dimensions	21 × 12 × 5 cm
Brand Name	YZPOWER
Origin	CN(Origin)
Display screen	No
Quick charge	Yes
Type	Electric
Intelligent Charge	Yes
Certification	CE
Package	Yes
Model Number	84V 4A 5A 5.5A Lithium Battery Charger
Use	Standard Battery
Input	AC 100-240V, 3A
Output Voltage	DC 84V(+ / – 0.3V)
Output Current	4A 5A (+ / – 0.5A)
Batteries	20 Series
Size	205mm x 121mm x 50mm
Frequency	50/60HZ
Warranty	3 Years
Cooling Fan	Yes
Protection	Over Current Over Voltage Short Circuit Reverse Connection
Notice	Pls Clearly Leave Words of Input And Output Plug Othwewise Not Be Sent
