12V Step Down DC Converter 1A-15A For Retrofit Light Fixture etc.

Name: 12V Step Down DC Converter 1A-15A For Retrofit Light Fixture etc.
Brand: ebikescooter.com
SKU: 32029
Availability: InStock

Buy Now, Pay Later

USD 21 – USD 79

DC-DC Quality Converter. Efficiency:> 93% .

Can supply 1A-20A.

Perfect for retrofit any high power lightsource on e-scooter e-bikes and so on.

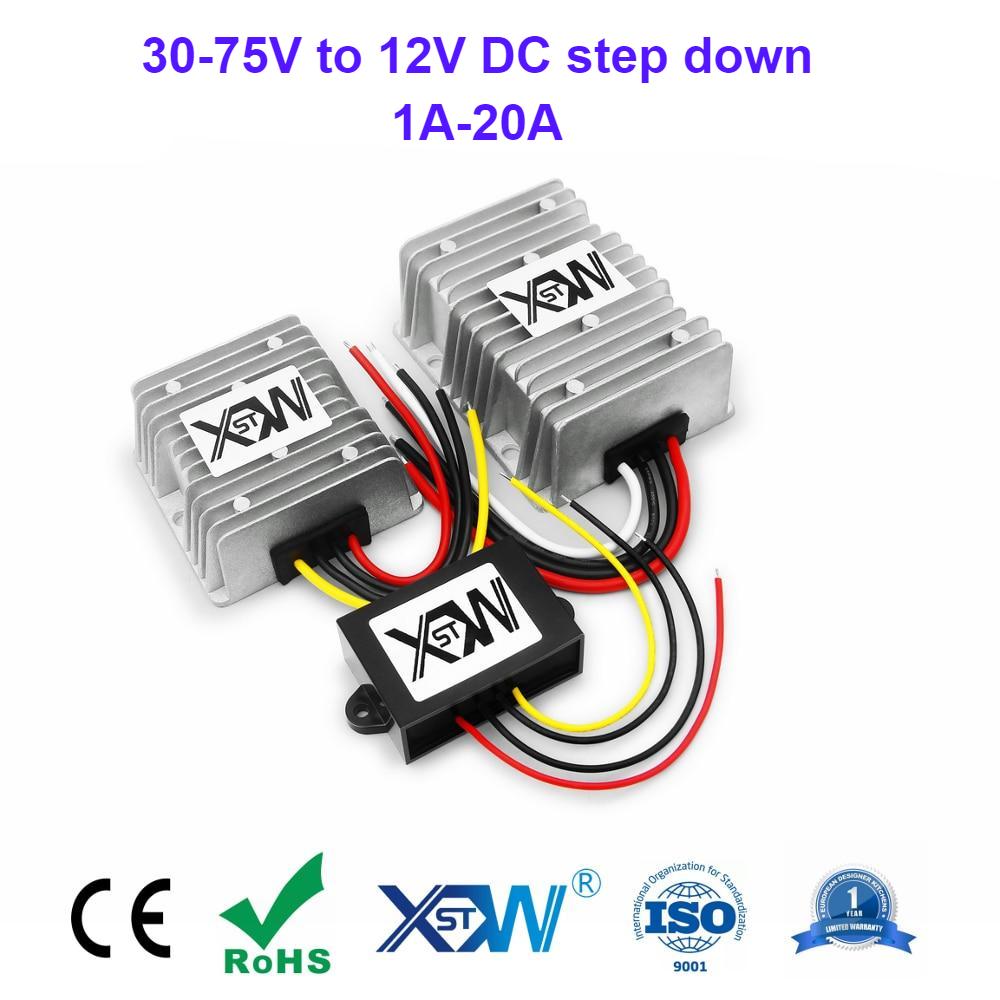

Input: 30-75V to 12V DC step down
1A-20A Output max current
No load current (1-5A)3.5mA; (5-15A)25mA

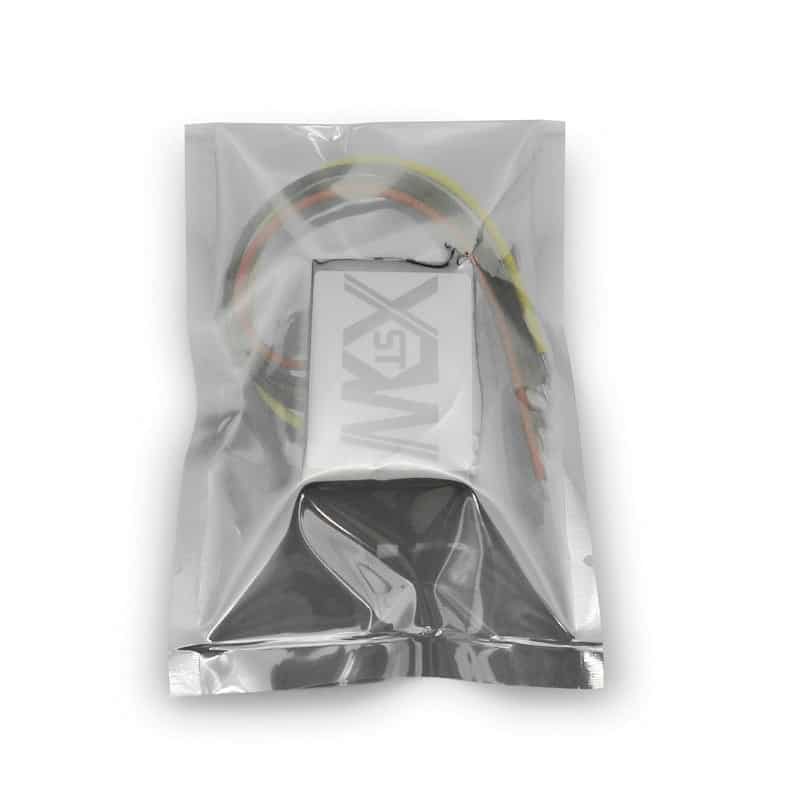

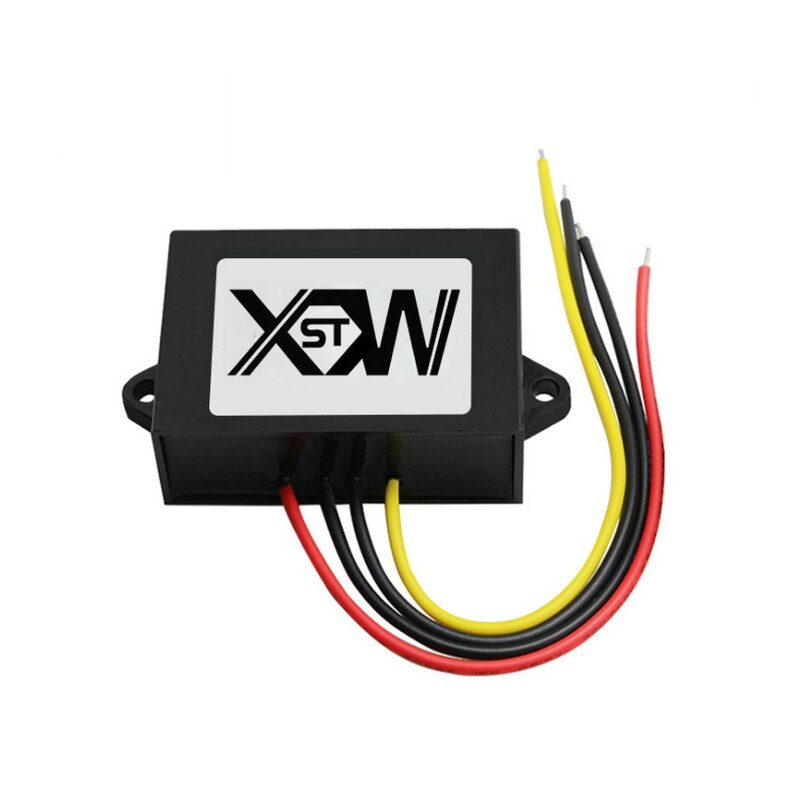

Output 1-5A ABS Plastic 58*40.5*22mm, 90g, Anti-static Bag

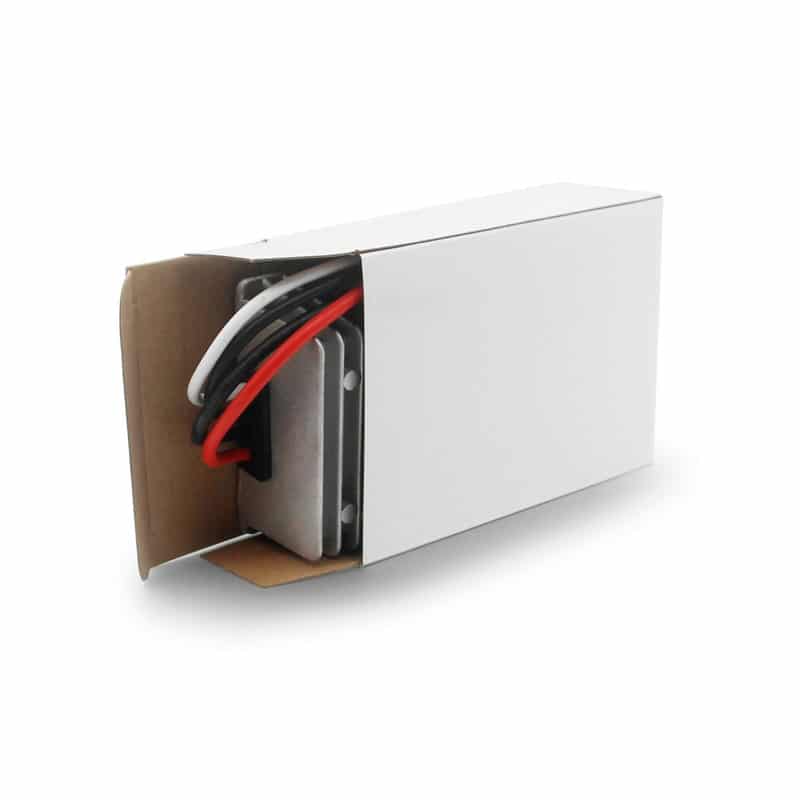

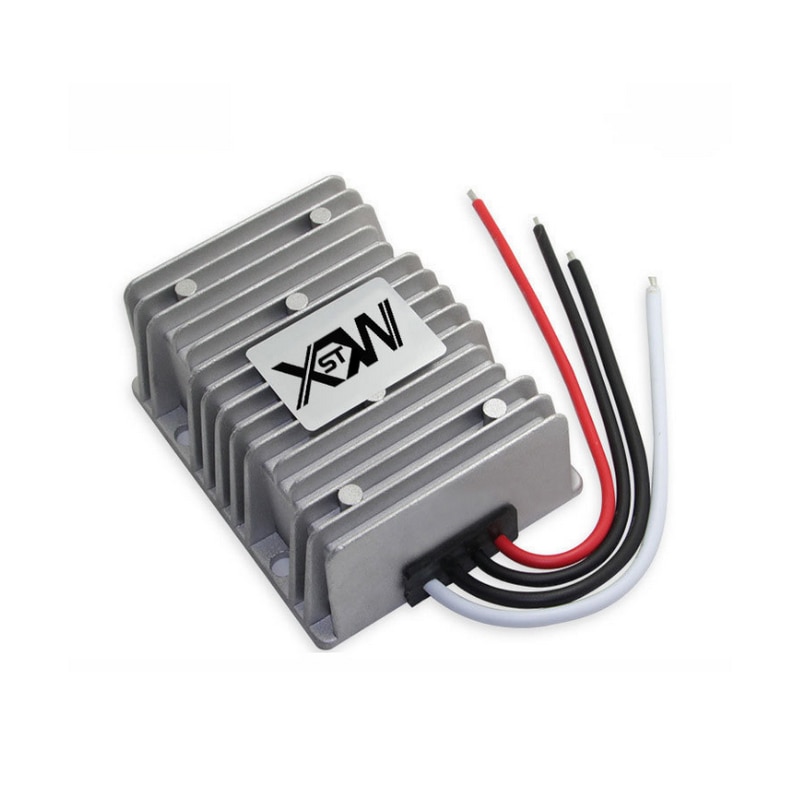

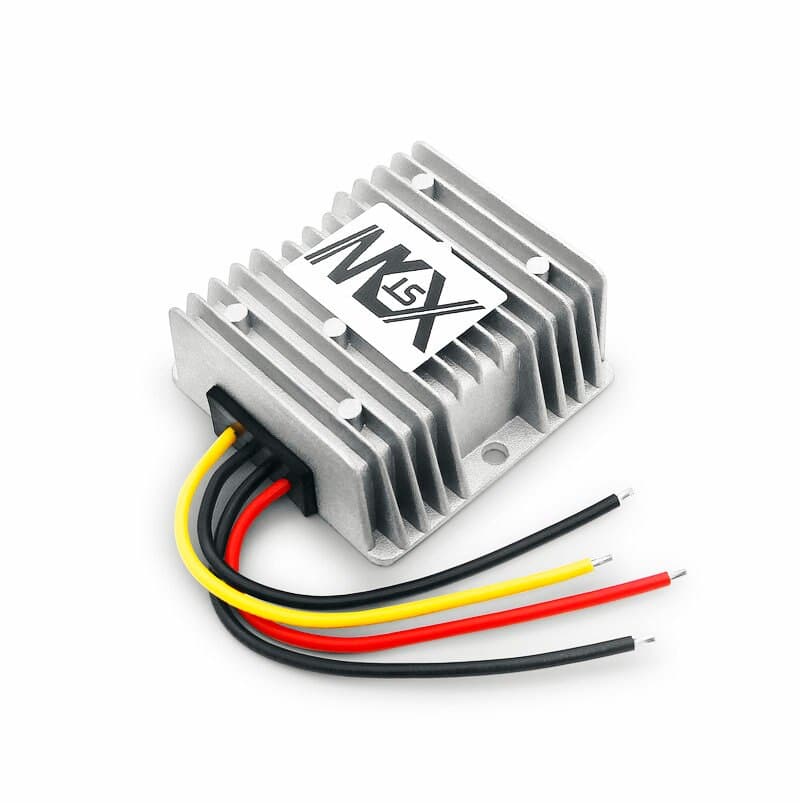

Output 5-15A Aluminum 74*74*32mm, 260g, Anti-static Bag
Waterproof rate: IP67
Operating temperature:-40 ° C ~ +85 ° C
Efficiency:> 93%

Output Current
Input Voltage	Input: 30-75V
Output Voltage	12V Clear

Quantity

Select a product variation to get estimate

MPN: 2000000320298

SKU:

32029

Categories:

DC Converters For 12V Light, Headlight & Switches For Horn & Light, Universal Light Parts

Tags:

1A-20A, dc-dc buck, DC-DC converter, Step Down DC 12V

Product details

In our service center we use this DC Buck when we install high power LED front spot on scooters.

As example, when install our GR-50X Super High Power U3 LED

50W at 12V is 4.16A. We will install at an Minimotors or Kaabo 60V. We need to convert the 60V ( 59V-67.2V) down to 12V

We know the maximum current for the GR-50X draw 4.16A. We when select the 5A model. The device is only 5.8*4.5*2.2cm, so extremely easy to hide in the deck and pull the wires to the head stem.

If you need us to install, just send us an message and we will hand out instruction to let us pick up your scooter with UPS in most EU.

XWST 24v 36V 48v 60v 72v 20-75v to 12V Power Converter Step Down 60 Volt to 12 Volt Buck Voltage Reducer For Golf Carts Vehicles

Item specifics

Weight	0.1 kg
Output Current	10A-ALUMINIUM, 15A-ALUMINIUM, 1A, 20A-ALUMINIUM, 2A, 3A, 4A, 5A, 5A-ALUMINIUM
Brand Name	XWST
Type	DC/DC Converters
Certification	RoHS
Origin	CN(Origin)
Size	5840.522MM
Model Number	XW-60-12
Output Frequency	43hz
Output Type	Single
Output Power	101 – 200W
Weight	97g-500g
is_customized	Yes
Output Current	1-28A
Input voltage	DC 60V
Input voltage Range	DC 20-75V
Output Voltage	DC 12V
Conversion Efficiency	>93%
Working Temperature	-30°C to +80°C
Shell	Plastic
Waterproof	IP67
Warranty	1 year
