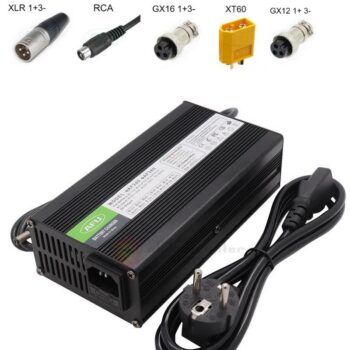

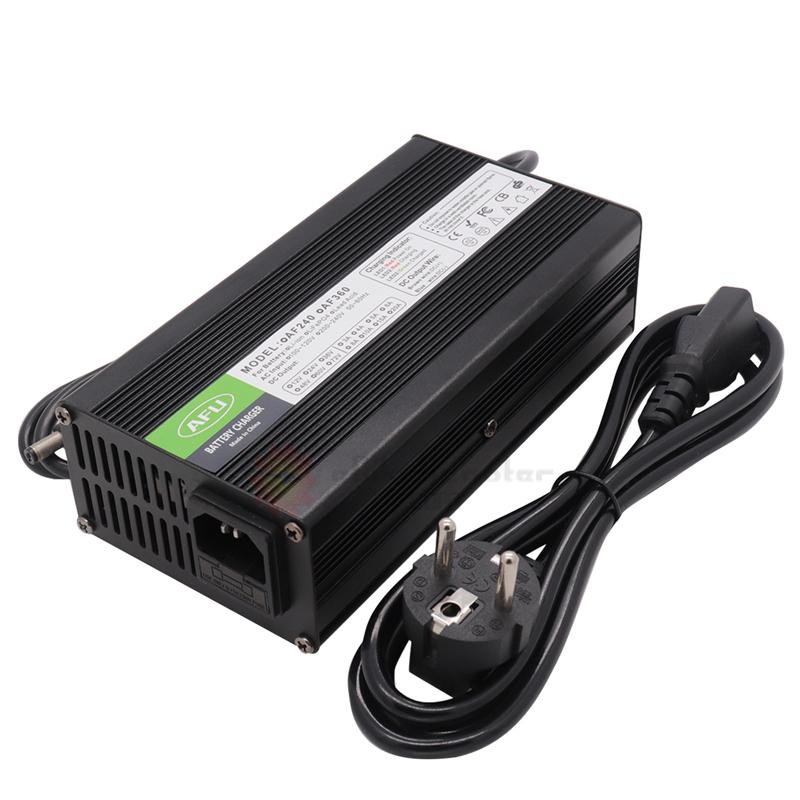

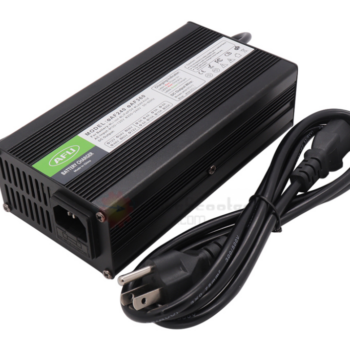

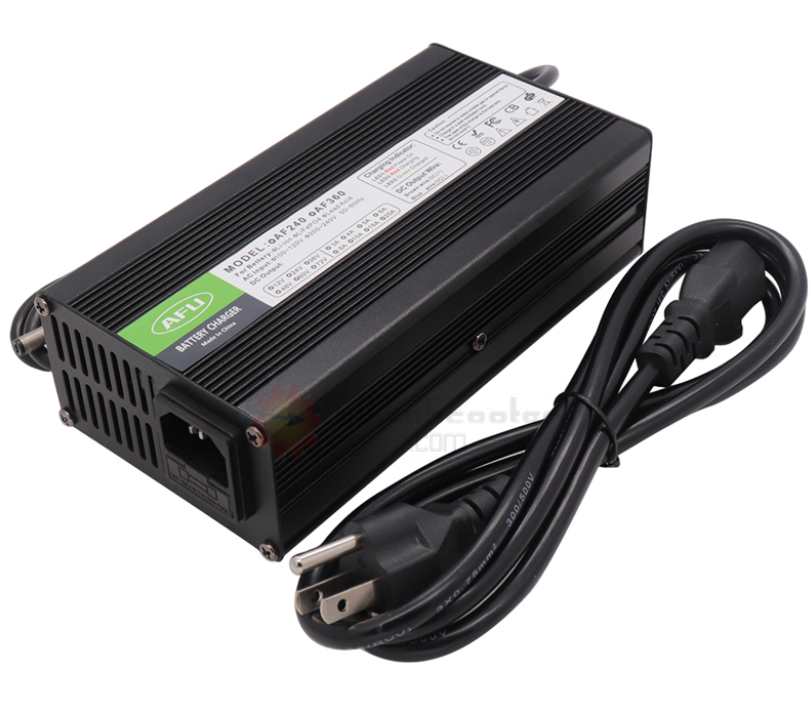

72V 3A battery pack charger output 84V
Universal Fast Charger for all Li-ion 74V 20s battery packs
- AC CORD: EU & US
- DC OUTPUT: ALL TYPES
Brand Name: AFU (WAOUKS)
Model Number: AF240-8403B
AC Input Voltage: 110/220Vac
Frequency: 50~60Hz
DC Output Voltage: 84 Volt
DC Output Current: 3 Amp

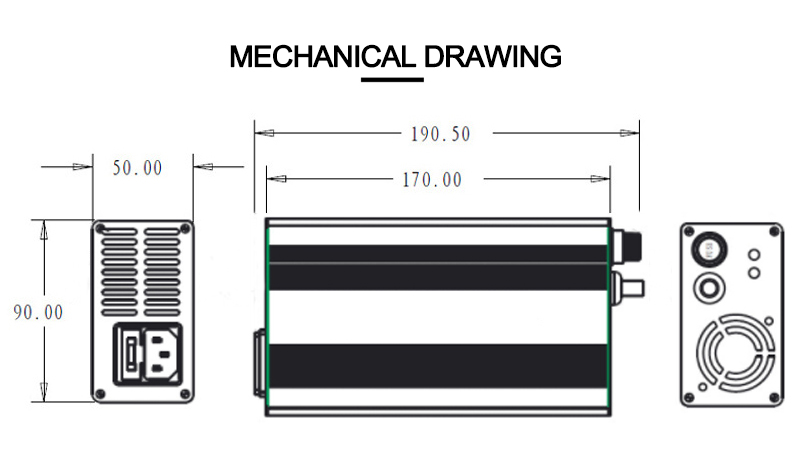

Dimension: 170*90*50mm
Net Weight: 1.1KG
Case Material: Aluminum case
Certificate: CE FCC ROHS
|
Package Contents
|
*1x battery charger
*1x Input Wire *1x User Manual This battery charger is delivered with the selected dc plug type installed |
DKK 750 Excluding. VAT (EU VAT calculated at checkout)
- Fast Express shipping on 90% product
- Free shipping cost from €199
- 14 days returns
- 2-year warranty on all our products (EU)
- 1-year warranty on all our products rest world
|
Product Name
|
AF240 BATTERY CHARGER
|
||
|
Brand Name
|
AFU
|
Model Number
|
AF240-8403B
|
|
AC Input Voltage
|
110/220Vac
|
Frequency
|
50~60Hz
|
|
DC Output Voltage
|
84 Volt
|
DC Output Current
|
3 Amp
|
|
Dimension
|
170*90*50mm
|
Net Weight
|
1.1KG
|
|
Case Color
|
Black
|
Case Material
|
Aluminum case
|
|
Suitable Battery Type
|
20S 74V Li-ion battery (S=Series Connection)
|
Efficiency
|
≥85%
|
|

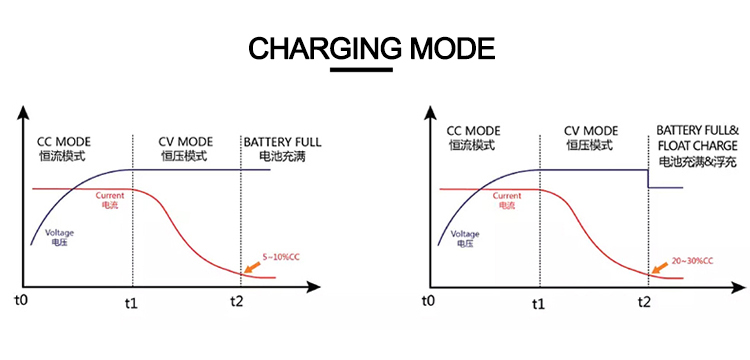

Charging Mode
|
Three-stage Intelligent Charging Mode: Constant Current Constant Voltage~Trickle(Floating Charge) to Ensure Battery Fully Charged |
||
|
Charging Indicator
|
Red and Green, double color instructions, Red logo charging, Green logo finished or standby
|
||
|
Operating/Storage
Conditions |
Operating:Ambient temperature: -20~+40℃; RH: 5~95%; Max. altitude: 10000 meter
|
||
|
Storage:Ambient temperature: -40~+70℃; RH: 0~95%; Max. altitude: 20000 meters
|
|||
|
Various Protection
|
Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge
|
||
|
Our Advantage
|
Safety certifications CE, RoHS, FCC Directive-compliant, Intelligent IC control ,full automatic transition of CC,CV and
Float/Cut-off rickle, meet the demands for different Curve. |
||
|
Aluminum case, Robust, Elegant, Safe, Stable, Reliable
|
|||
|
Package Contents
|
*1x battery charger
*1x Input Wire *1x User Manual This battery charger is delivered with the selected dc plug type installed |
||
| Weight | 1,1 kg |
|---|---|
| Dimensions | 23 × 15 × 7 cm |
| Socket Standard | |

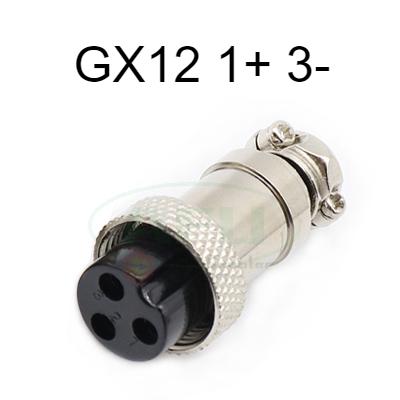

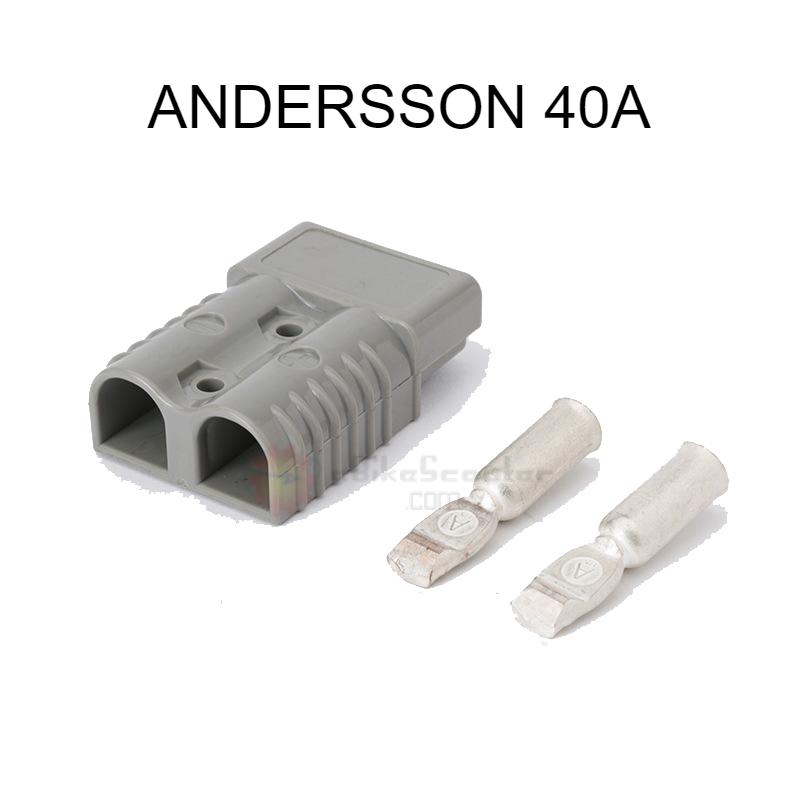

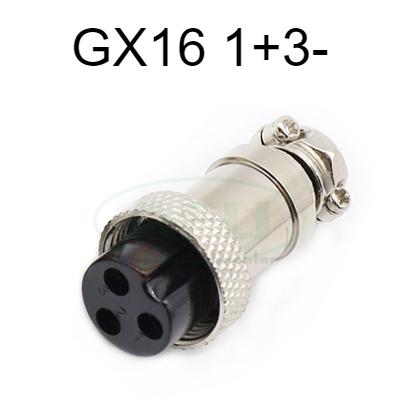

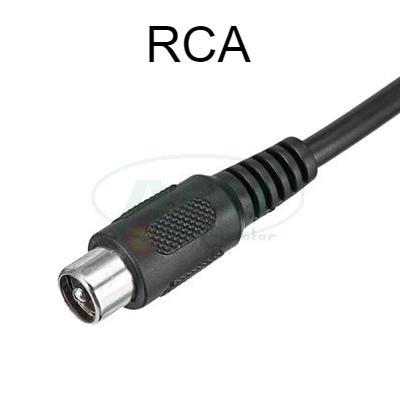

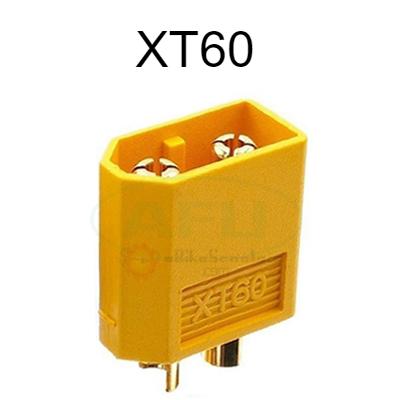

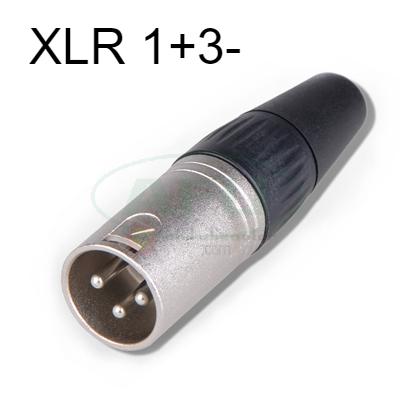

| DC-OUTPUT CONNECTOR |
