72V lithium Li-ion battery charger. 84V 2.5A

  • 20S Li-ion/LiPo Battery Charger for Electric Bike/Scooter. Standard charger for Kaabo and Minimotors among many other brands.
  • High Quality Lithium battery charger For 60V battery pack charger. DC output is 84V 2.5 (amp)
  • Protection functions and fanless

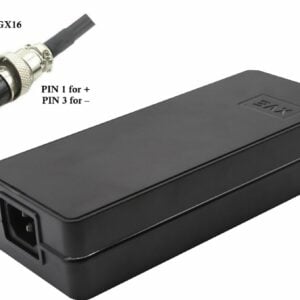

3P GX16 connector PIN 1 for plus PIN 3 for negative

72V battery 20S Li-ion Charger for Electric Bike/Scooter
DC plug with 3P GX16 connector PIN 1 for + PIN 3 for –
PC Fireproof Material, ABS
Short Circuit Protection,Over-charging, Overcurrent, Overvoltage
XVE- 8400300
DC output 84V  max 210W
Ampere output 2.5A
AC input 100-240V/3A
CE FCC ROHS
Lithium battery charger
Read Full Description!

71$ incl. VAT

Estimated delivery between 17/12 - 20/12

  • Fast Express shipping on 90% product
  • Free shipping cost from €199
  • 14 days returns
  • 2-year warranty on all our products (EU)
  • 1-year warranty on all our products rest world

72V battery pack charger. DC output is 84V 2.5A/210W

Safe high power fanless charger

  • 20S Li-ion/LiPo Battery Charger for Electric Bike/Scooter. Standard charger for Kaabo and Minimotors among many other brands.
  • High Quality Lithium battery charger For 72V battery pack charger. DC output is 84V 2.5A (amp)
  • Protection functions

3P GX16 connector PIN 1 for plus PIN 3 for negative
( used by most brand. Standard for hig power models from Minimotors and ZERO)

The Charger Feature:
1. With the appearance patent, the product is made of high-quality flame-retardant material ABS + PC, with a smooth appearance without impurities, and can withstand high temperatures of 125 degrees Celsius.
2. Protection function Short circuit protection / over current protection / over voltage protection Red light-Charging green light–OK Automatically stop charging when the battery is full.
3. The built-in output capacitor is globally applicable. AC input voltage, high efficiency and soft start current, reduces the impact on the feet. The effectiveness of AC input is small in size and light in weight. 100% full load aging test, EMI filter ripple is small.
4. No fan, no fan, no noise. The charger has a fan and only needs to be built-in to easily absorb dust and stack it can also be burned. Our fanless design has a powerful built-in shell with radiant surrounding disintegration and hot, so some thermal shells are normal when charging, but it is wide and durable.
5. The accuracy of current and voltage of our products is ± 0.1 A. The tolerance of current and voltage between 3 cm and ± 0.1 V is definitely not a virtual mark.

Specification
Certification
CE/FCC/ETL/ROSH
Usage
ebike and Balancing Scooter Charger
Material
PC Fireproof Material, ABS
Protection
Short Circuit Protection, ovp, OTP, OLP, ocp, Other, Low Tension, Over-charging, Overcurrent, Overvoltage
Brand Name
XVE
Model Number
XVE- 8400300
Port
DC
Input voltage and current
100-240V/3A
output voltage and current
84V2.5A
Output Power
Max 210W
Name
84V Ebike scooter charger
Input Voltage
AC 100~240V 50/60HZ
Output
84V/2.5A
Color
Black
Size
195*85*42mm
Material
ABS+PC Fireproof Material
Warranty
2 Years
Weight 1 kg
Dimensions 24 × 16 × 9 cm
Socket Standard

, , , , ,

Brand

XVE

One of the major supplier of chargers to main brand and Ninebot and Xiaomi. The was founded in 2003. it covers a total area of 12000 square meters with over 500 employees, XVE is a global famous brand for Power adapter,battery charger and switch power supply . Professional and experienced engineers team work for R&D and an Efficient Production Department. Which have got plenty of experience for development and production regarding Lion battery charger ,Lead acid battery charger , Lifepo4 battery charger and various mobility scooter charger and power adapter and power supply. XVE only do selling certified chargers , such as ROHS FCCP SEKCC  EMC...... The Burn-in tested for all chargers is ensured to meet the requirement of ROHS and Safety
