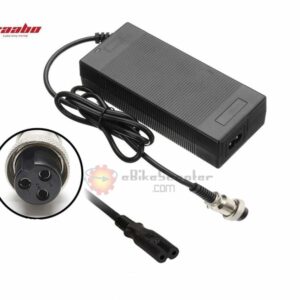

Original Standard Charger For Wolf Warrior II ( also fit Mantis Dual Version 60V)
2A 60V Charger
compatible with both Wolf Warrior II and Mantis Pro with 60V system and GX16 3-pin connector
The first phase current charging,the LED lamp to light is red ,charging to the rated voltage to the second stage of constant current,slowly reduced ,when the charging current to turn the lamp current,LED indicator turns green,the battery has been full of to 95-98%,battery charging continues to very small current ,at this time no damage to the battery charging,until the battery is fully .
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green)
Note: Wolf Warrior is able to handle 2 x 2A chargers (2 ports) at the same time enabling faster charge times. We also got fast chargers for your kaabo with battery extended management system HERE
Specifications | Input voltage: 100-240V AC |
Line frequency: 50-60Hz | |
Efficiency(at 100% load): 85%-90% | |
Turn Lamp Current : 200-400ma | |
Output invariable current range : 1.8a-2.2a | |
Output Voltage: 66.4V | |
Output Current: 2A | |
Operating temperature:-5°C~45°C , Storage temperature:-20°C~70°C | |
Protection | Short circuit protection |
Over voltage protection | |
Over current protection | |
Reverse polarity connect protection | |
Charging Control | 3-step charging control (pre-charge-CC-CV) |
Option: a) NTC inside | |
b) 100% cut off when battery fully charged | |
Dual color LED indicator:(Charging:Red; Fully charged or no load:Green) | |
Light weight and compact | |
High efficiency and low power consumption | |
Safety & Approval | Reached Insulation class: II |
Meet Electrical safety: EN60335, IEC60335 | |
Meet EMC standards: EN55014-1, EN55014-2, | |
Achieved: CCC,CE,ROHS,FCC,PSE,KC,CB,LCD,SAA approvals |
