Front/Rear Lights With Horn 300 Lumen LED Universal 24V 36V 48V 60V

5 out of 5 based on 1 customer rating
(1 customer review)

e-bike and e-scooter  Head Light kit complete with horn and tail light with brake light. Universal 36-48 Volt

  • Small in size, does not take up much room on your handle bars
  • Perfect for any e-scooter. e-bike or ATVs and much more
  • Front High power 70 lux,bright enough for city and road
  • Rear LED high power 40 lux
  • Power 12W
  • DC12V 24V 36V 48V 60V
  • ABS Plast
  • Input current 40-60 mA

We ship this product from HK-Warehouse



128$ incl. VAT

In stock

Estimated delivery between 23/04 - 26/04

  • Fast Express shipping on 90% product
  • Free shipping cost from €199
  • 14 days returns
  • 2-year warranty on all our products (EU)
  • 1-year warranty on all our products rest world

e-Bicycle and e-scooter Universal Headlight Tail Rear Lights LED include Brake Light

24V 36V 48V 60V

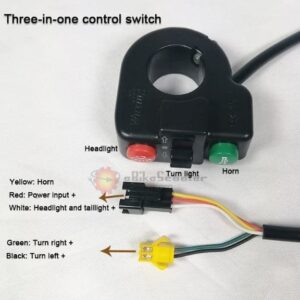

This switch has the following features:

  • It has a button for your Horn, Left and Right turn signals, and a ON/OFF button for your lights.
  • This switch is small in size, does not take up much room on your handle bars.
  • It can be easily mounted over your existing clutch lever perch to save space.
  • Perfect for any e-scooter. e-bike/scooter or ATVs and much more
  • Overall Wire Length: approx 96cm / 37.79″
  • Main material: ABS Plastic
  • Main color: black

wuxing switch DK-15

Headlight Features:

E bike headlight 1.High power 70 lux,bright enough for city and road cycling 2.Wide voltage input:fits most ebike. 3.With 4 high-quality LED lamp beads, the illumination area is larger. 4.Size:60*60*50mm 5.

Note: The red cable of the headlight is the positive pole of the speaker, the green cable is the positive pole of the indicator light, and the black cable is the common negative pole of the lamp and the speaker.

Wire Setup:

  • Blue: Lights
  • White: Horn
  • Green: Right Turn Signal
  • Yellow: Left Turn Signal
  • Red: Ground for Turn Signal Lights

Packaging Included

1 x 12V|24V|36V|48V|60V|72V 12W 300 Lumen LED Front Light with Built-in Horn
1 x 36V|48V|60V 5W Rear Light with Brake and Turn Function
1 x Switch
1 x Connection wires
The new lamp group Line length is 140cm

Packing information:
Net weight: 0.34kgs/Net weight
Gross weight: 0.6kgs/Gross weight
Packing size: 23x10x14/Package size





Front Light Wire

9

4

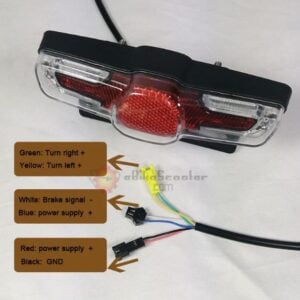

Product specifikation tail light
Black Cable Rear Light “-” Main Connection
White Cable Brake Light “-“
Blue Cable Brake Light “+”
Red Cable Night Vasion Light “+”
Yello Cable Turn Left Light “+”
Green Cable Turn Right Light “+”
Type eBike Rear Light
Flashing 5PCS LED
Cable Length 35cm
Rated Voltage 36V/48V/60V
Working Time 30000H
Size 145(L)*45(W)*70(H)
Weight 1,2 kg
Brand Name

ifunmobi

Type

Other

Voltage

48V
