BAFANG Cables, Brake, Gear, Shift Speed, Sensors, Programming Cable

Name: BAFANG Cables, Brake, Gear, Shift Speed, Sensors, Programming Cable
SKU: 45730
Availability: InStock

A : Gear Sensor 1 (Male 3PIN Yellow)
B : Programming Cable 1 (Male 8PIN)
C : Brake Sensor 1) Waterproof Connector (Male 3PIN Yellow)
D : EB-BUS split 1 to 4 Cable
E : 3PIN Extension Cable (Female to Female,Female to Male,Male to Male)
F : 5PIN Extension Cable (Female to Female,Female to Male,Male to Male)
H : 8PIN Extension Cable 1) Connector Plug : Female to Male)

Read Full Description!

SKU: 45730 Categories: Connectors & Wires, Conversion kit Brand: BAFANG

Price range: 10$ through 35$ Excluding. VAT (EU VAT calculated at checkout)

Select Variation

Clear

Fast Express shipping on 90% product
Free shipping cost from €199
14 days returns
2-year warranty on all our products (EU)
1-year warranty on all our products rest world

1T2 1T4 3 4 5 8 PIN Extension Cables

A : Gear Sensor 1) Waterproof Connector : Male 3PIN Yellow 2) Length : 16.9inch 3) Compatibility : A. Cut power during shifting gear

B : Programming Cable 1) Waterproof Connector : Male 8PIN 2) Length : 22.9inch 3)Compatibility : A. Change the basic user level of the controller B. Reduce the current C. Enable full throttle at PAS level 1-9

C : Brake Sensor 1) Waterproof Connector : Male 3PIN 2) Length : 29.9inch 3) Compatibility : BAFANG Mid Drive Motor Kits BBS01 BBS02 BBSHD

D : EB-BUS 1T4 Cable 1) Waterproof Connector : Male 8PIN ( M8.4 ) 2) Length : 53.93inch 3) Compatibility : BAFANG BBS BBSHD Motor Conversion Kits

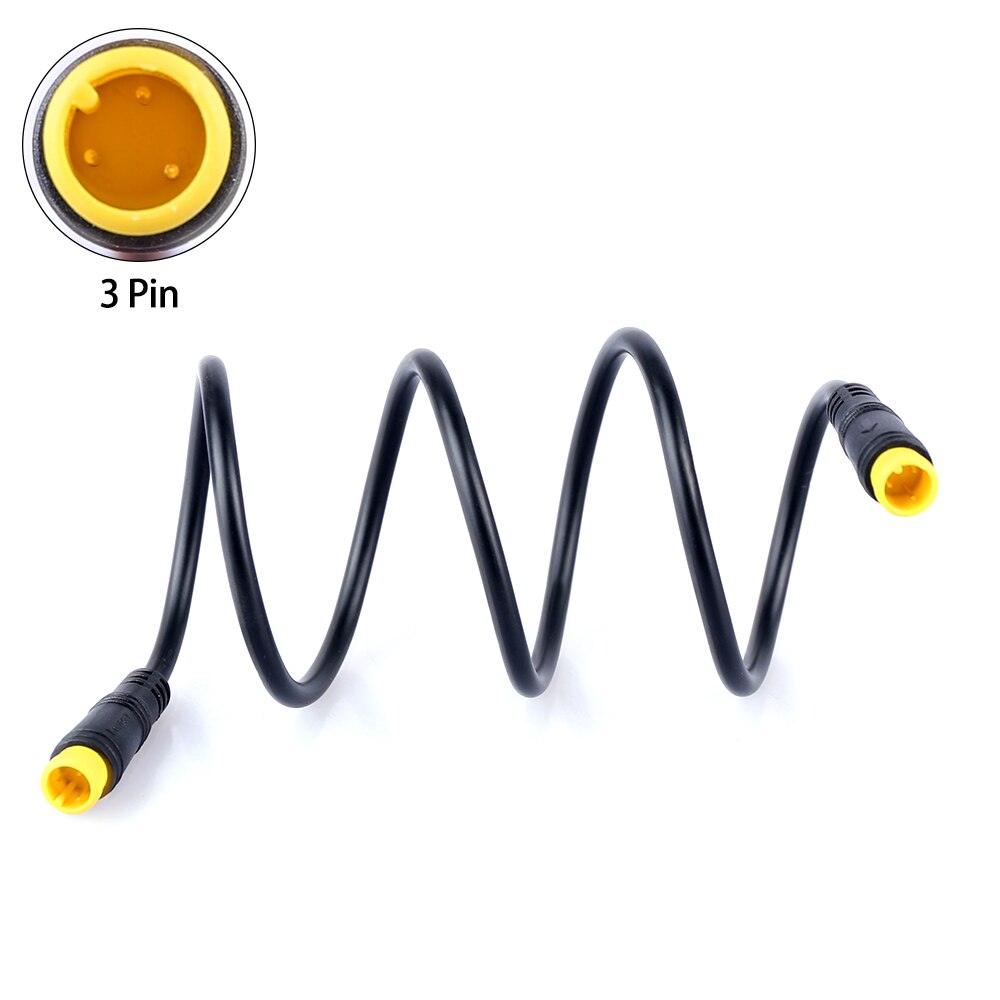

E : 3PIN Extension Cable 1) Connector Plug : Female to Female , Female to Male , Male to Male 2) Length : 22.4inch 3) Compatibility : BAFANG Motor Kits – Brake Levers , Hydraulic Brake Sensors , Thumb Throttle , Twist Throttle , Gear Sensor

F : 5PIN Extension Cable 1) Connector Plug : Female to Female , Female to Male , Male to Male 2) Length : 22.04inch 3) Compatibility : BAFANG Motor Kits – LCD Display

G :Y-Spliter 1T2 Cable 1) Waterproof Connector : 3PIN 2) Length : 8inch / 20inch 3) Compatibility : BAFANG BBS BBSHD Motor Conversion Kits

H : 8PIN Cable – 1T4 Extension Cable 1) Connector Plug : Female to Male 2) Length : 15.7inch / 23.6inch 3) Compatibility : EB-BUS 1T4 Cable’s Extension Cable

Brand Name	BAFANG
Type	Shift Sensor
Origin	Mainland China
3PIN Extension Cable Length	22.4inch
4PIN Extension Cable Length	11.8inch / 23.6inch
5PIN Extension Cable Length	22.04inch
8PIN Cable Length	15.7inch / 23.6inch
Y-Spliter 1T2 Cable Length	8inch / 20inch
EB-BUS 1T4 Cable Length	53.93inch
USB Programming Cable Length	22.9inch
Gear Sensor Length	16.9inch
3Pin Brake Sensor Length	29.9inch
Speed Sensor Length	15.7inch / 23.6inch
XT60 Connect Cable Length	29CM
