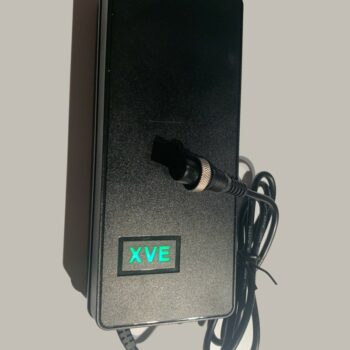

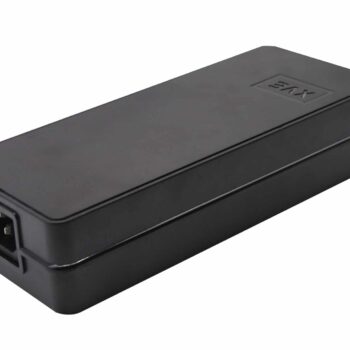

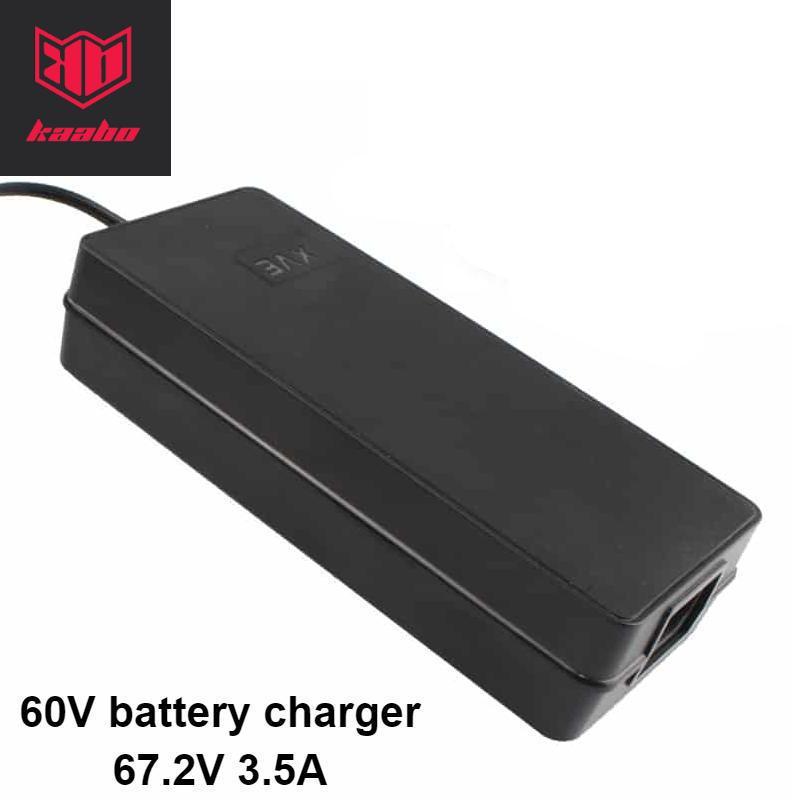

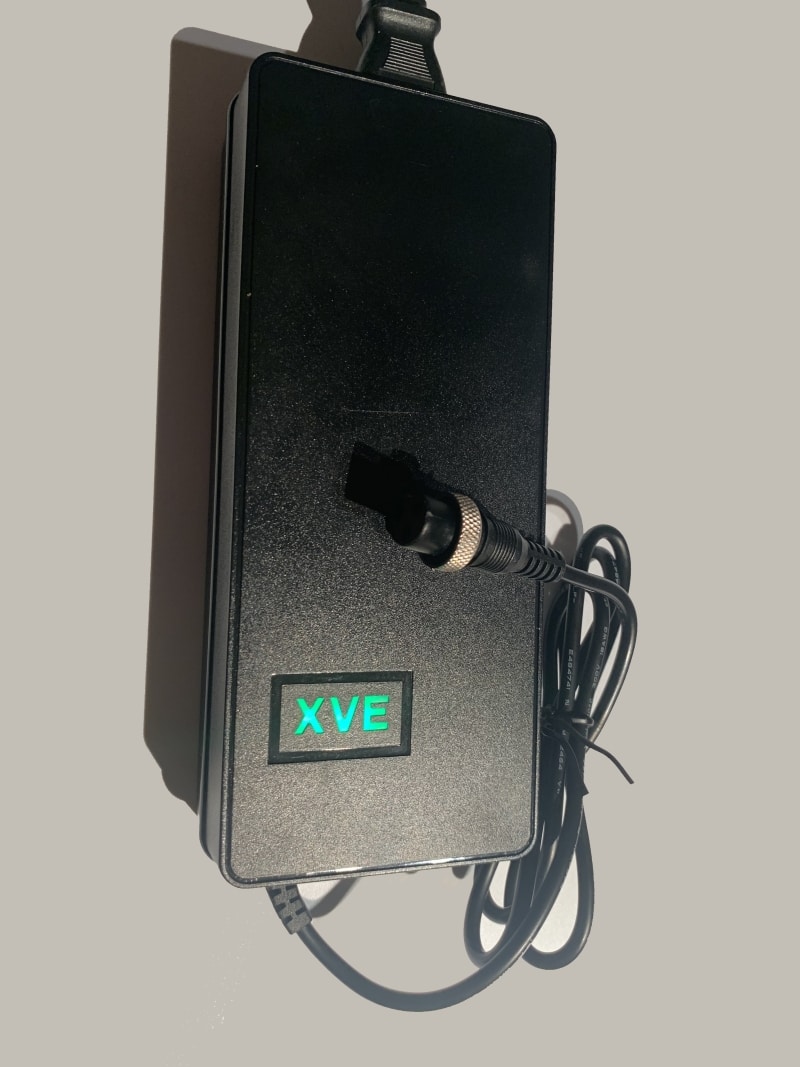

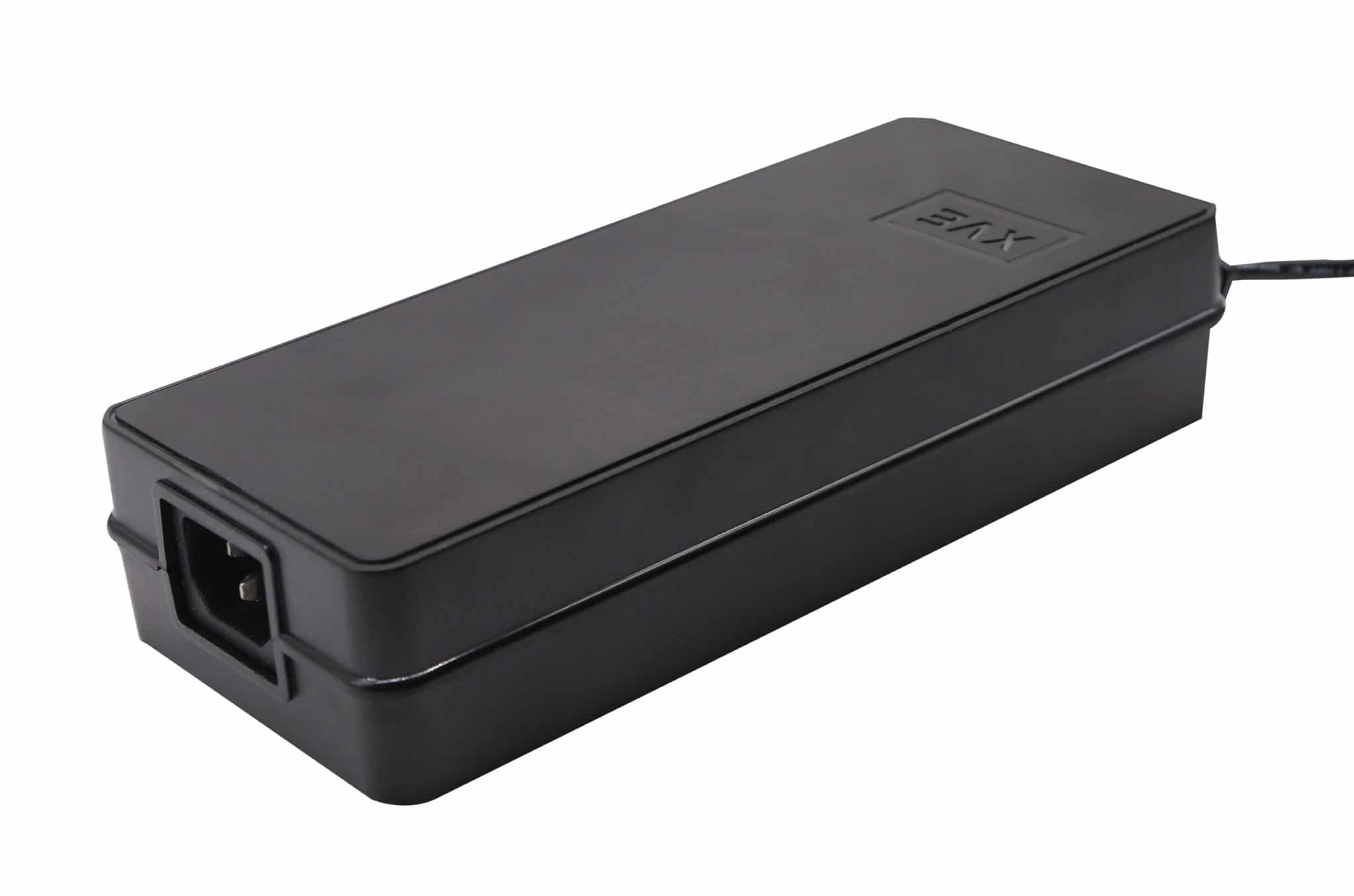

Kaabo 60V 3.5A Fast Charger

Kaabo 60V battery pack fast charger

Safe high power fanless charger

  • Mantis PRO 60V
  • Kaabo Wolf Warrior
  • Kaabo Wolf Warrior GT PRO



Certification CE/FCC/ETL/ROSH
Usage 60V ebikes, kick scooters. Balancing Bard Charger
Material PC Fireproof Material, ABS
Protection Short Circuit Protection,  Over-charging, Overcurrent, Overvoltage
Model Number XVE- 8400300
DC Connector 3P GX16 connector PIN 1 for plus PIN 3 for negative
Input voltage and current 100-240V/3A
output voltage and current 67.2V – 3.5A
Output Power 235W
Name 60V Ebike scooter charger
Input Voltage AC 100~240V 50/60HZ
Output 67.2V/3.5A
Size 195*85*42mm
Warranty 2 Years

128$ incl. VAT

Estimated delivery between 22/04 - 25/04

  • Fast Express shipping on 90% product
  • Free shipping cost from €199
  • 14 days returns
  • 2-year warranty on all our products (EU)
  • 1-year warranty on all our products rest world

60V battery pack charger. DC output is 67.2V 3.5A/235W

Safe high power fanless charger

  • 16S Li-ion/LiPo Battery Charger for Electric Bike/Scooter. Standard charger for Kaabo and Minimotors among many other brands.
  • High Quality Lithium battery charger For 60V battery pack charger. DC output is 67.2V 3.5A (amp)
  • Protection functions

3P GX16 connector PIN 1 for plus PIN 3 for negative
( used by most brand. Standard for hig power models from Minimotors and ZERO)

The Charger Feature:
1. With the appearance patent, the product is made of high-quality flame-retardant material ABS + PC, with a smooth appearance without impurities, and can withstand high temperatures of 125 degrees Celsius.

2. Protection function Short circuit protection / over current protection / over voltage protection Red light-Charging green light–OK Automatically stop charging when the battery is full.

3. The built-in output capacitor is globally applicable. AC input voltage, high efficiency and soft start current, reduces the impact on the feet. The effectiveness of AC input is small in size and light in weight. 100% full load aging test, EMI filter ripple is small.

4. No fan, no fan, no noise. The charger has a fan and only needs to be built-in to easily absorb dust and stack it can also be burned. Our fanless design has a powerful built-in shell with radiant surrounding disintegration and hot, so some thermal shells are normal when charging, but it is wide and durable.

5. The accuracy of current and voltage of our products is ± 0.1 A. The tolerance of current and voltage between 3 cm and ± 0.1 V is definitely not a virtual mark.



Specification
Certification
CE/FCC/CB/ROSH/ETL
Usage
ebike and Balancing Scooter Charger
Material
PC Fireproof Material
Protection
Short Circuit Protection, ovp, OTP, OLP, ocp, Other, Low Tension
Brand Name
XVE
Model Number
XVE-6720350
DC Connector
3P GX16 connector PIN 1 for plus PIN 3 for negative
Input voltage and current
100-240V/2.5A
Output Power
235.2W
Use
standard battery
Name
60v li-ion battery charger
Input
100-240VAC 50/60HZ
Output
67.2V 3A
Demension
195*85*42MM
Material
ABS+PC
Certificate
KC, FCC, GS, CE, EMC, CB, FCC
Weight 0,62 kg
Dimensions 24 × 16 × 9 cm
Usage

Motorcycle / Scooter

Demension

195*85*42MM

Output Power

250w

Use

standard battery

Port

DC

Material

PC Fireproof Material, ABS+PC

Defective rate

Less than 0.1%

Model Number

XVE-6720300

Certification

CE/FCC/CB/ROSH/ETL

Supports Solar Energy

No

Name

60v li-ion battery charger

Brand Name

XVE

Function

Power Supply

Type

Electric

Input

100-240VAC 50/60HZ

Output

67.2V 3A

Input voltage and current

100-240V/2.5A

Features

100% full load burn-in test

Protection

Short Circuit Protection, ovp, OTP, OLP, ocp, Other, Low Tension

Certificate

KC, FCC, GS, CE, EMC, CB, FCC

Socket Standard

, , ,

Brand

Kaabo

The history of modern electric scooters began after 2012, and e-scooters are divided into two types: daily mobility and off-road evolution. Kaabo Electric Scooter started in 2013 and is an early pioneer of daily scooters and a leader of off-road players. At the beginning of its establishment, Zhejiang Kaabo Electronic Technology Co., Ltd. was based on the development and production of electric scooters, electric unicycles, and electric balance bikes. After several years of innovation and experimentation, now "Qibu" brand, the English "KAABO" has been exported to more than 30 countries and regions in Europe, America and Africa. As the pioneer in new intelligent transportation, Kaabo’s secret for success is continuous innovation. Kaabo has been constantly convening excellent developers from all over the world and constantly introducing iterative products. It currently has patented technologies in more than 24 countries. In particular, its Mantis series realizes the state of electric scooters up to 60 kilometers per hour, endurance up to 80 kilometers, and power up to 1,000 watts, which pushes the riding status of electric scooters to a new height. Kaabo has established the industry benchmark established, leading the industry's research and development direction. Entering 2020, Kaabo are moving forward with a brand-new attitude. In the face of the global market, we have innovated the distribution model. We hope to bring high-quality products to our partners, and at the same time, we can assist them in marketing & sales. Kaabo truly achieve the coordination and efficient development of factory brands and distribution partners. We hope Kaabo will have a bright and exciting future!
